Here’s little tutorial on BMW E-series coding programs installation.
Disclaimer: The document was translated from Korean. You are at your risk.
Part I. Required files
1. INPA
2. BMW Coding Pack
3. BMW Coding Tool
→ Download E_coding.zip
Unpack and use
4. SP-DATEN
→ Download and use the data file for BASE and car https://mega.nz/#F!ukQzzBwb!bH9cRXpvW4xiTLr-N10CjQ
! iAJg_VqYENXBCaGLS-AvFvhPSNEae2mp-aWtuYOHGv8 (E_coding.zip decryption key)
Part II. Install the INPA program
1. Materials
(1) Coding required cable: BMW INPA K+DCAN cable
(2) Programs required for coding: INPA / NCS Expert
(3) Own vehicle information file (SP-Daten, SP-Daten capacity of 30 ~ 40GB per vehicle)
2. INPA program installation
(1) INPA / K + D CAN drive installation
If you unzip it, there are three folders in Step 1, 2, 3, and there are installation instructions, a description PDF document,
1) Copying the entire EC-Apps under the 01_Step1 directory to C: /
2) Run NFS / Entpackt / disk1 / SETUP.exe under the directory 01_Step1
Install
If not, copy all of these NFS directories to C: / and install them)
Note 1. In Windows 8.1 32bit, copy the file under disk1 to C; /
NTVDM automatically download and run)
Note 2. If the program fails to install again after the installation fails, copy the previously copied C: / EC-Apps
Clear all and copy again
Select Window XP on the screen
The remaining selection values
User mode / Parametrienen einer neuen Configuration ohen Dafer / OBD / KeinApi-Trace / Kein IFH-TRACE / Komfor (.IPO) selection
The first time you install regsvr32, the two * .ocx files will fail to register, but if you uninstall and reinstall the program you just installed from the control panel, the ocx file will be registered normally.
In particular, the message “The program is not installed properly” appears on Windows 7/8. Select the program installed correctly ”
3) Run INSTALL / Instprog.exe under the directory 02_Step2
(Copy and run under C: temp, but not on other drives)
Select “ENGLISH” on the screen, press Continue / Continue and never change the folder or drive to install.
In the Configuration window
Select “Bmw Group Rectification programs UK” → Continue
EDIABAS 6.4.3 → Update
INPA 5.0.1 → Update
NCS Expert 3.0.8 → Check Complete → Continue
4) INSTALL / Instprog.exe under the 03_Step3 directory
(Copy and run under C: temp, but not on other drives)
Download Windows Xp Free
3) in the same way
Old verstion delete → Yes
5) Overwrite inpa.ini under c: / EC-APPS / INPA / CFGDAT with inpa.ini in the INPA folder.
3. Cable connections and port settings
(1) Plug OBD cable into USB port and select manual drive installation
1) Install it as a drive under the drive under the INPA folder, and when installed, recognize USB Serial Port
2) In the USB Serial Port property, set Port Setting / Advanced / Com Port No. 1, Response Time 1
(2) Run Drive_D_CAN_USB / OBDSetup.exe under INPA directory and reboot
INPA installation complete
(3) Confirmation of installation: Execute c: /EC_Apps/INPA/BIN/inpaload.exe and Battery / Ignition
If you see two black dots on the installation succeeded
Part III. Installing BMW Standard Tool from BMW Coding Pack
1. When unzipping, four folders with numbers 1 ~ 4 are created, and BMW Standard Tool 2.12 installation
(Be sure to run the program under BMW Coding Pack folder)
(1) Before running the program, open the Compatibility tab in the properties of the installation file
→ Change Compatibility by selecting Windows XP Service Pack 3
(2) Installation file Click “English” in English / German selection window.
(All installation programs will be deleted when English is selected)
(3) Select German / Weiter (Next) “Ich akzeptieredie Vereinbarung”
→ Press “Weiter” 3 times to set the directory (set to 4 folders default) and add 1 folder
(4) Zus? Zliche Aufgaben ausw? Len
→ Check out two of the above four check boxes: “Datensicherung” (data backup)
(Leave the other two checked and press the next one to pop up a popup window)
(5) Leave the STD: OBD default value on the next Hardware Interface screen

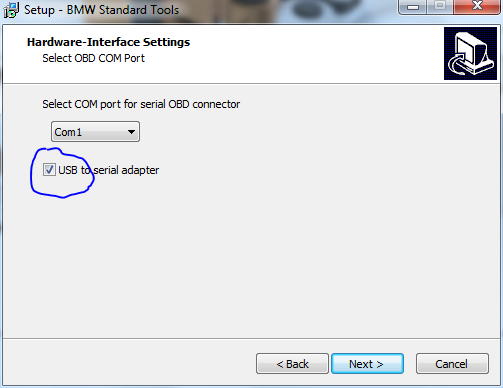

(6) COM port number checked in Device Manager 1 Select “COM1” and then USB auf Serial
Adapter Check
(7) Click Next and then click Installer to start the installation
Select “Ignore” if error screen appears and select “Ignore” if error screen appears (error 2)
2. When the installation is complete, go to the 3-UPDATE folder and add three folders (EC-APPS, EDIABAS,
NCSEXPER) whole
Copy to C: → Overwrite existing file with latest English version)
3. After copying the update file, copy the “BMW Coding Shorcuts” folder 4 to the desktop
Part IV. Installing BMW Coding Tools and SP_DATEN
1. Unzip the file into C: / windows / system, C: / windows / system32, C: / windows / Syswow64
Copy comdlg32.ocx, mscomctl.ocx under BMW Coding Tool folder
2. Open a command window in administrator mode and type
(Enter the Windows program app and right-click command to run as administrator)
“Regsvr32 comdlg32.ocx”, “regsvr32 mscomctl.ocx” → After registry registration succeeded
Close the command window and run BMW Coding Tools
3. Press the “Select SP-source” button on the right “SP daten” to find your vehicle information daten file
Select ah Select
4. Click the “UPdate SP-source” button on the right “SP daten” to link and copy the daten file
5. Down the received dummy profile (NCExpert Profile / NCSDUMMY4.PFL) to c: / NCSEXOER / PFL
copy
All programs for E series coding installation is complete.
It is not easy. You must follow each one step by step. Keep the order …
Who Viewed This Article Also Views:
This is the easiest way to seup BMW Standard Tools 2.12, without any installation and configuration problems, which offered by a mhhauto member. Hope this helps.
This is Windows XP Pro 32-bit WMware virtual machine image that has BMW standard tools 2.12 installed and updated with sp-daten v56. This download may be helpful to those who had a hard time with BWM Standard tools installation and configuration.
While running the same copy of this virtual machine on my Windows 10 laptop, I was able to accomplish the following:
- Connect to my car ECU using BMW INPA K+CAN and scan for error codes and get information on different modules.
- Register car battery using Tools32.
- Code (activate/deactivate) various options such as mirror folding and window roll up with key fob, seat belt alert deactivation, and digital speedometer activation using NCS-Expert. Also, I was able to fix not working paddle shifters after Alpina B3 flash.
- Flash Alpina B3 TCU software using WinKFP.
NCS-Expert was updated with v56 daten for e89 (e9x), e60 and e65 models, but only used on e92. WinKFP was only updated for e89.
Bmw Tools 2.12 Download
I confirm that this setup has worked for me without any issues (so far it was only tested on my 2010 BMW 335i), and I take no responsibility for if anything goes wrong for you while using (or misusing) it on your car. If you choose to download the image and use the preinstalled set of tools, you agree to do it at your own risk. Pes 2018 world cup patch download.
That being said, you will need a laptop running Intel processor (it cannot be AMD because virtual machine won’t run). I suggest Intel dual core and at least 4 GB of RAM and 80 GB of free space on your HDD/SSD.
The virtual machine is configured to use 70 GB of hard drive space and 3 GB of RAM. Those parameters can be modified in Workstation Player to better match the specs of your host machine before the virtual machine is started.
I am using OBD cable with a green board (NOT WHITE!! Bad quality with white) that I bought from eobdtool.co.uk for $18, and it did not fail me once.
Bmw Tools 2.12 Download Windows Xp 32-bit
Lastly, you will need to download VMware Workstation Player 12 which is free software if used non-commercially. Please go to https://mega.nz/#F!AspWDD4T!ZdGU9Su0MMz2VGHhIgbvGQ
And if you want to install Standard Tool 2.12 without VMware, you can go to download this and install follow system prompts:
